HiQltyla Microwave Door Switch Replacement, KW3AT-16 16A 125VAC, 2NO+1NC

HiQltyla Microwave Door Switch Replacement, KW3AT-16 16A 125VAC, 2NO+1NC

Universal Microwave Door Switch Normally Open Switch: Model Number: KW3AT-16 Outline Characteristic: Flat Terminal Material: High Temperature Resistant Plastics Temperature Resistance: 125℃ Color: Black Current: 16A Voltage: 125V / 250V Mechanical Life: 5E4 (50000 times) Terminal Type: Quick-connect Terminal #187(t=0.8) Shell Dimensions: 1.09″ x 0.63″x 0.41″(27.8 x 15.9 x 10.3 mm) Single Weight: 0.22oz / 6.3g Normally Closed Switch: Model Number: KW3AT-16 Outline Characteristic: Basic Form Material: High Temperature Resistant Plastics Temperature Resistance: 125℃ Color: Black Current: 16A Voltage: 125V / 250V Mechanical Life: 5E4 (50000 times) Terminal Type: Quick-connect Terminal #187(t=0.8) Shell Dimensions: 1.18″ x 0.63″x 0.41″(30 x 15.9 x 10.3 mm) Single Weight: 0.22oz / 6.2g Package Includes: 2x Normally Open Switch 1x Normally Closed Switch

About this item:

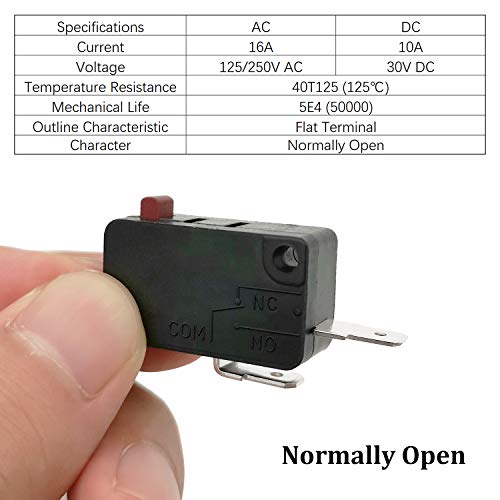

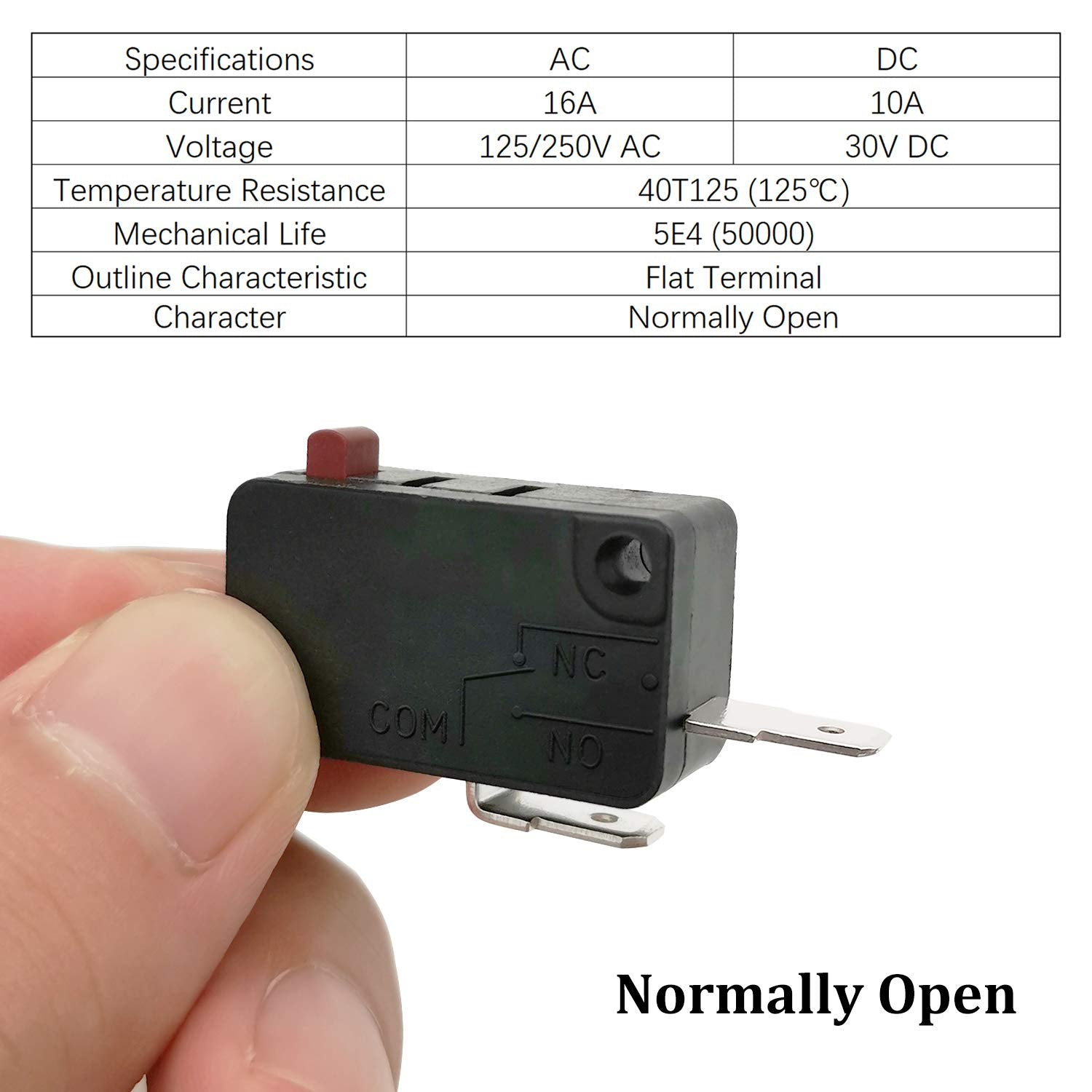

Normally Open Switch: Model: KW3AT-16; Specifications: 16(4)A 125/250VAC u, 10A 30VDC, 40T125, 5E4; Outline Characteristic: Flat Terminal, Character: Normally Open (Normal time Terminal COM connect to Terminal NC, the Circuit is Open; When pressed the button, Terminal COM connect to Terminal NO, the Circuit is Closed)

Normally Closed Switch: Model: KW3AT-16; Specifications: 16(4)A 125/250VAC u, 10A 30VDC, 40T125, 5E4; Outline Characteristic: Basic Form, Character: Normally Closed (Normal time Terminal COM connect to Terminal NC, the Circuit is Closed; When pressed the button, Terminal COM connect to Terminal NO, the Circuit is Open)

How to Distinguish: Normally Open Switch is Flat Terminal, Relatively Short; Normally Closed Switch is Basic Form, Relatively Long

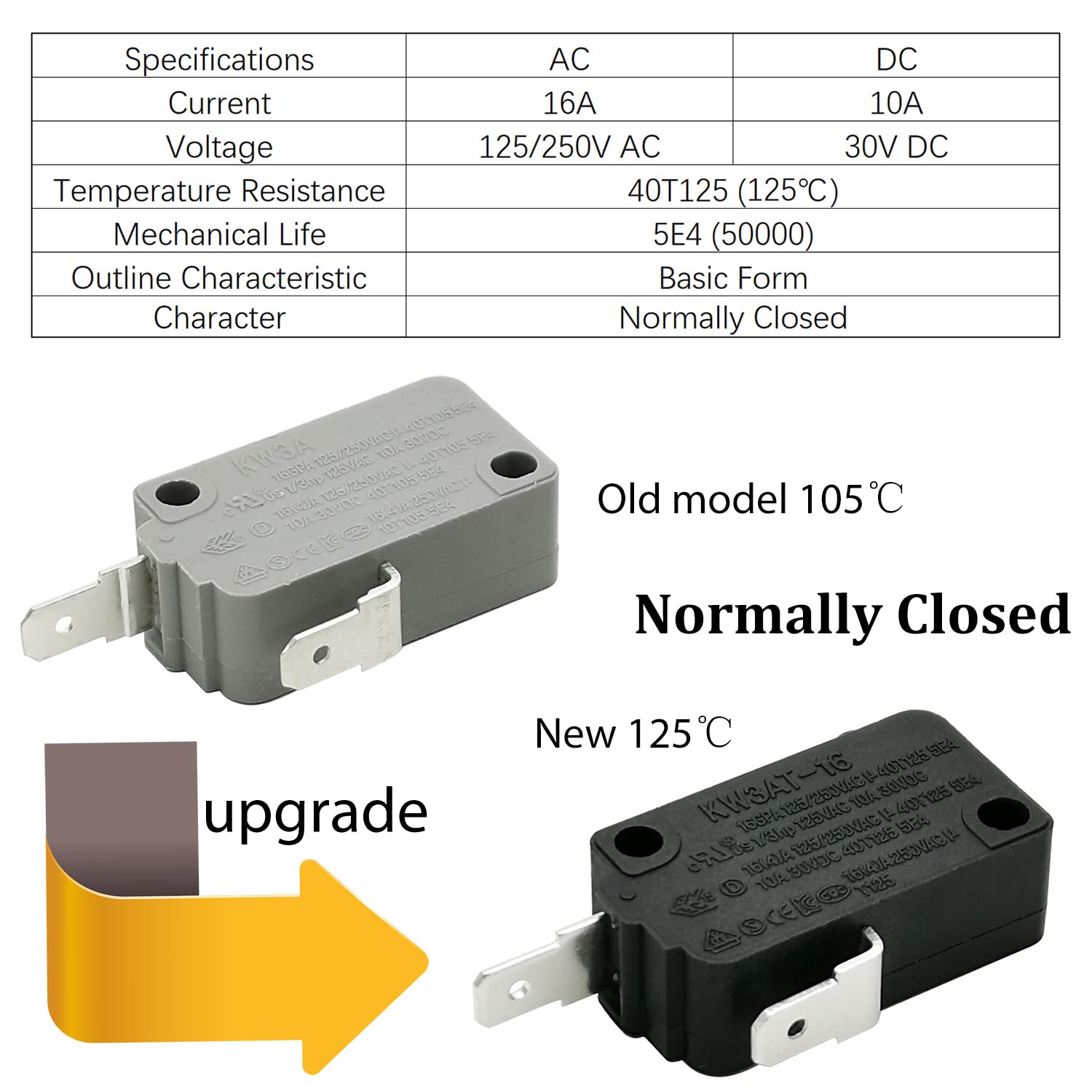

KW3AT-16 has a maximum temperature resistance is 125 ℃ and KW3A-16 has a maximum temperature resistance is 105 ℃, Other electrical performances are the same, so KW3AT-16 is an upgraded version of KW3A-16, which is more competent in harsh working environments than KW3A-16

Compatible with Most of Microwave Oven: If the microwave will not turn or heat properly, there could be an issue with the door switch, a new switch can return the microwave oven to normal operation

Package Includes: 2x Normally Open Switch + 1x Normally Closed Switch

Condition: New: This item is brand new, unused, unopened, and in its original packaging. It has never been worn or used and is in perfect condition, just as received from the manufacturer.
