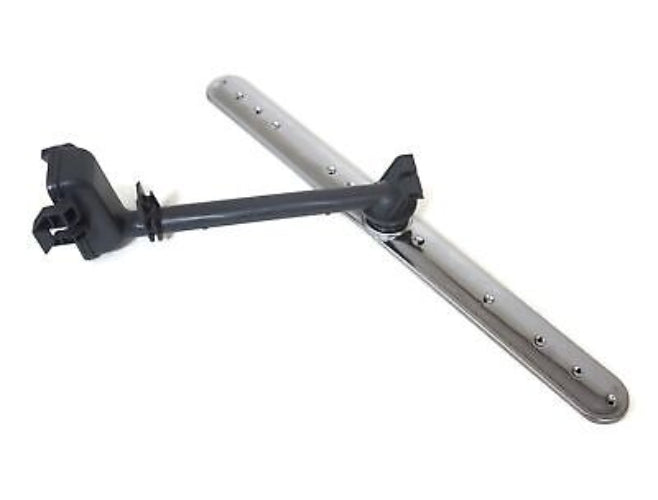

KitchenAid Dishwasher Manifold and Spray Arm (replaces W11174340) W11545334
Availability:
1 in stock
$49.00
1 in stock
Part Information
Basic Information
- Part Name:Â Dishwasher Manifold and Spray Arm Assembly
- Manufacturer:Â Whirlpool
- Category:Â Dishwasher Part
- Primary Function:Â The manifold and spray arm assembly is responsible for circulating water within the dishwasher. It includes a spray arm that rotates to evenly spray water onto dishes and a manifold tube that channels water to the spray arm.
Installation & Compatibility
- Compatible Models:Â Fits various Whirlpool dishwasher models; please confirm this part is correct for your model before ordering.
- Installation Difficulty: Medium — Requires unplugging the dishwasher and shutting off the water supply before installation.
- Tools Required:Â Work gloves for hand protection.
| Model Name | Model Number |
|---|---|
| Model #66513073K213 Kenmore dishwasher | 66513073K213 |
| Model #WDF530PSYM1 Whirlpool dishwasher | WDF530PSYM1 |
| Model #WDF530PLYB1 Whirlpool dishwasher | WDF530PLYB1 |
| Model #2214799N512 Kenmore Elite dishwasher | 2214799N512 |
| Model #66513972K013 Kenmore Elite dishwasher | 66513972K013 |
| Model #66514813N612 Kenmore Elite dishwasher | 66514813N612 |
| Model #66514052K010 Kenmore dishwasher | 66514052K010 |
| Model #66513749K603 Kenmore dishwasher | 66513749K603 |
| Model #DUL240XTPB6 Whirlpool dishwasher | DUL240XTPB6 |
| Model #KUDP01ILBT5 KitchenAid dishwasher | KUDP01ILBT5 |
Â
USED: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.
