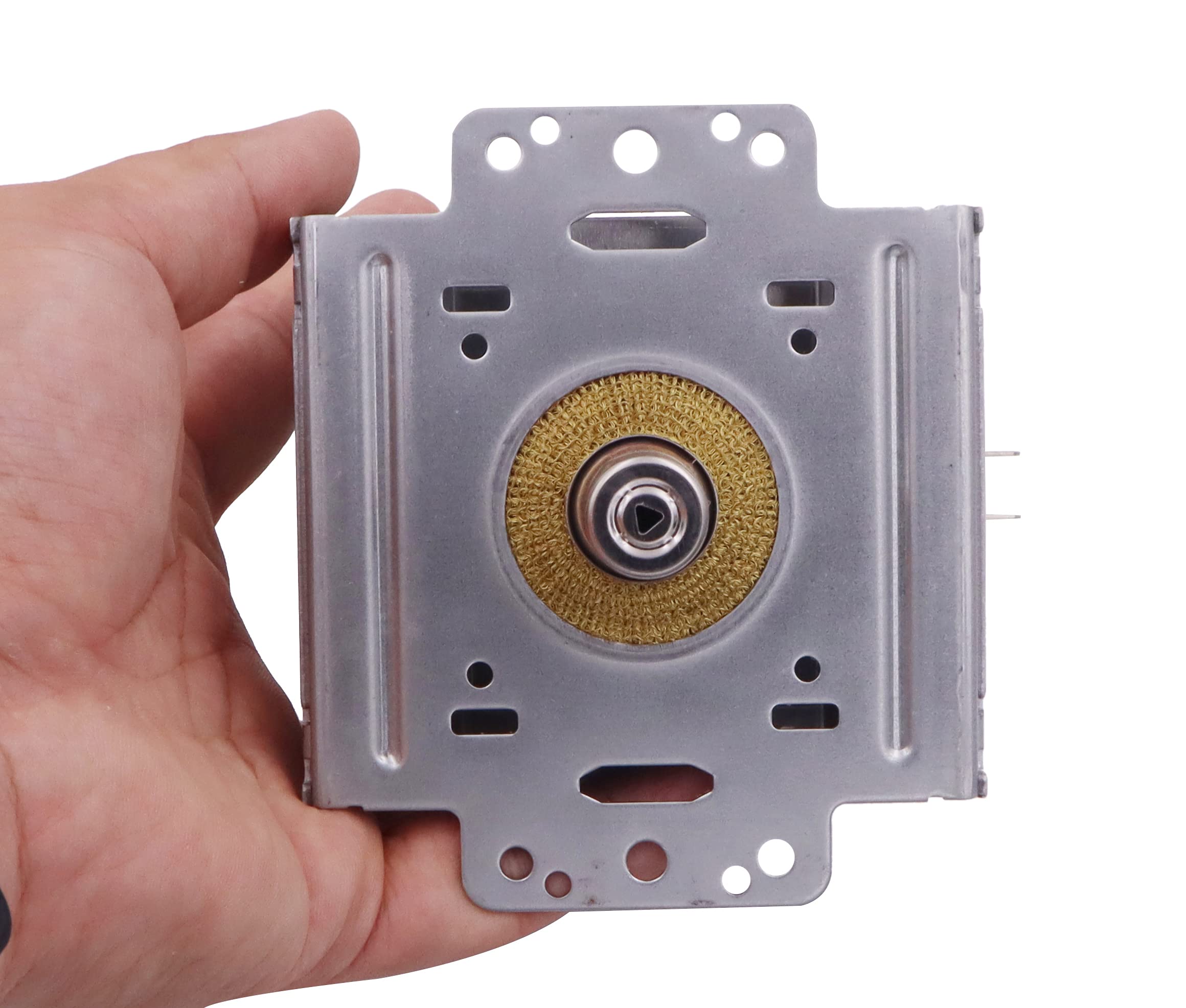

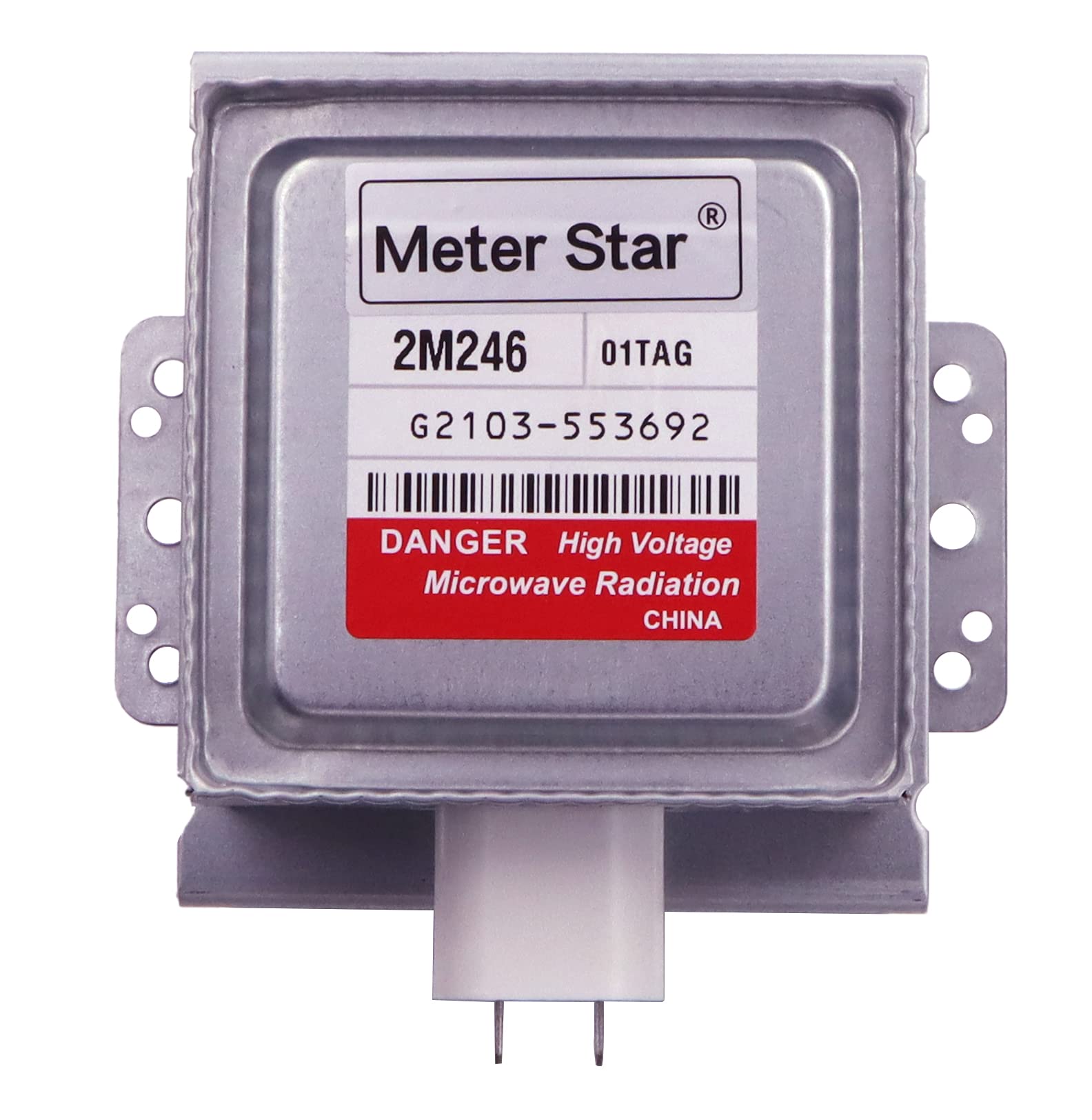

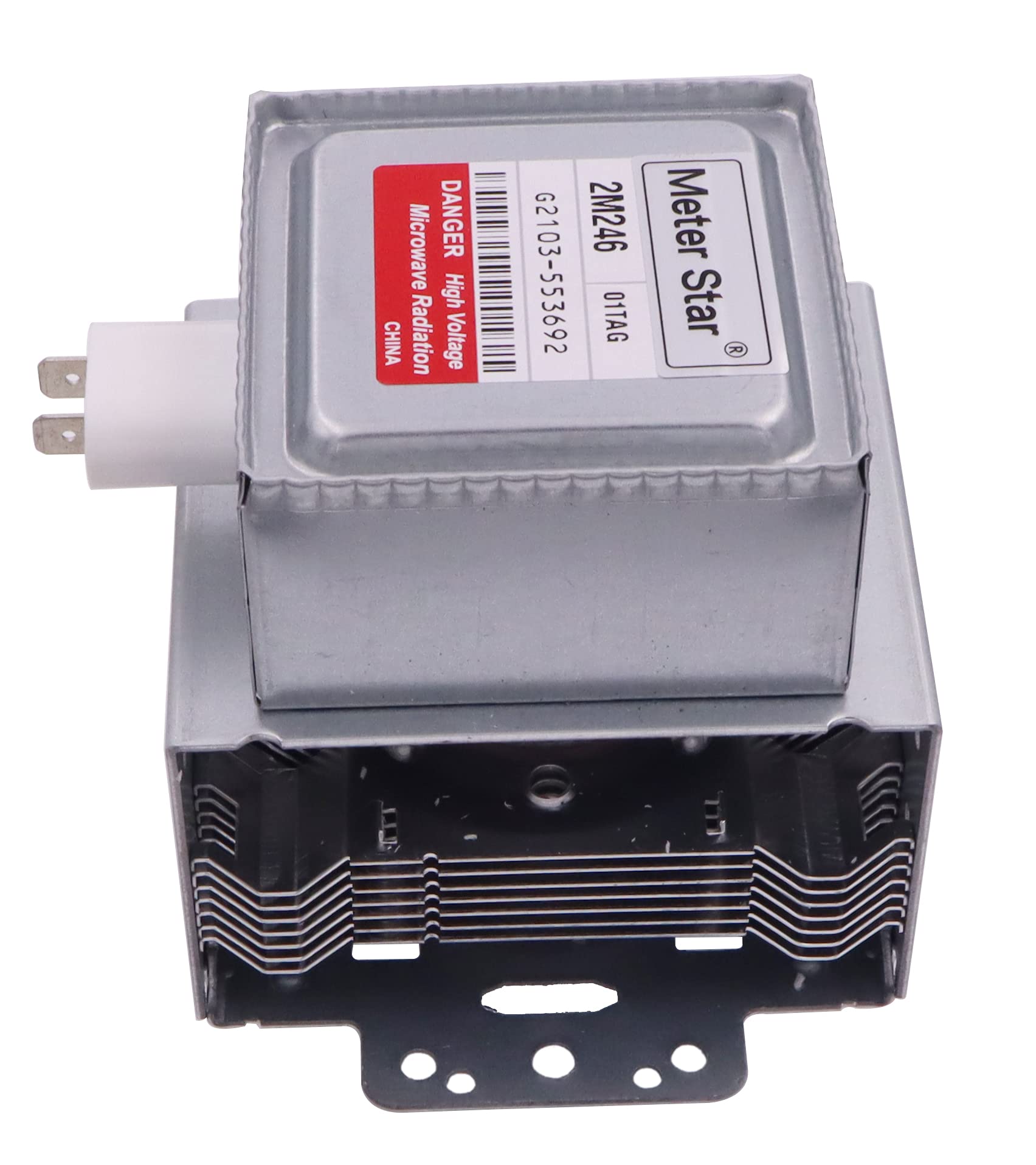

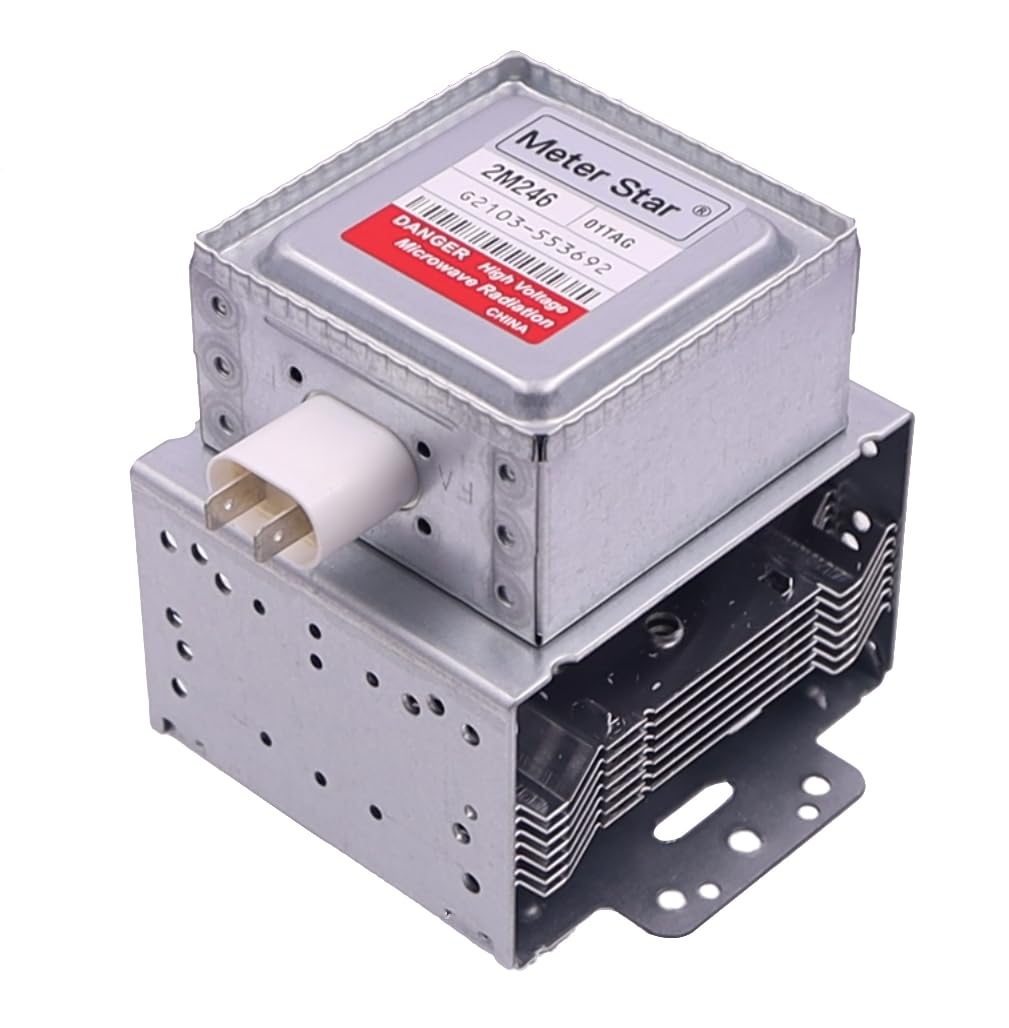

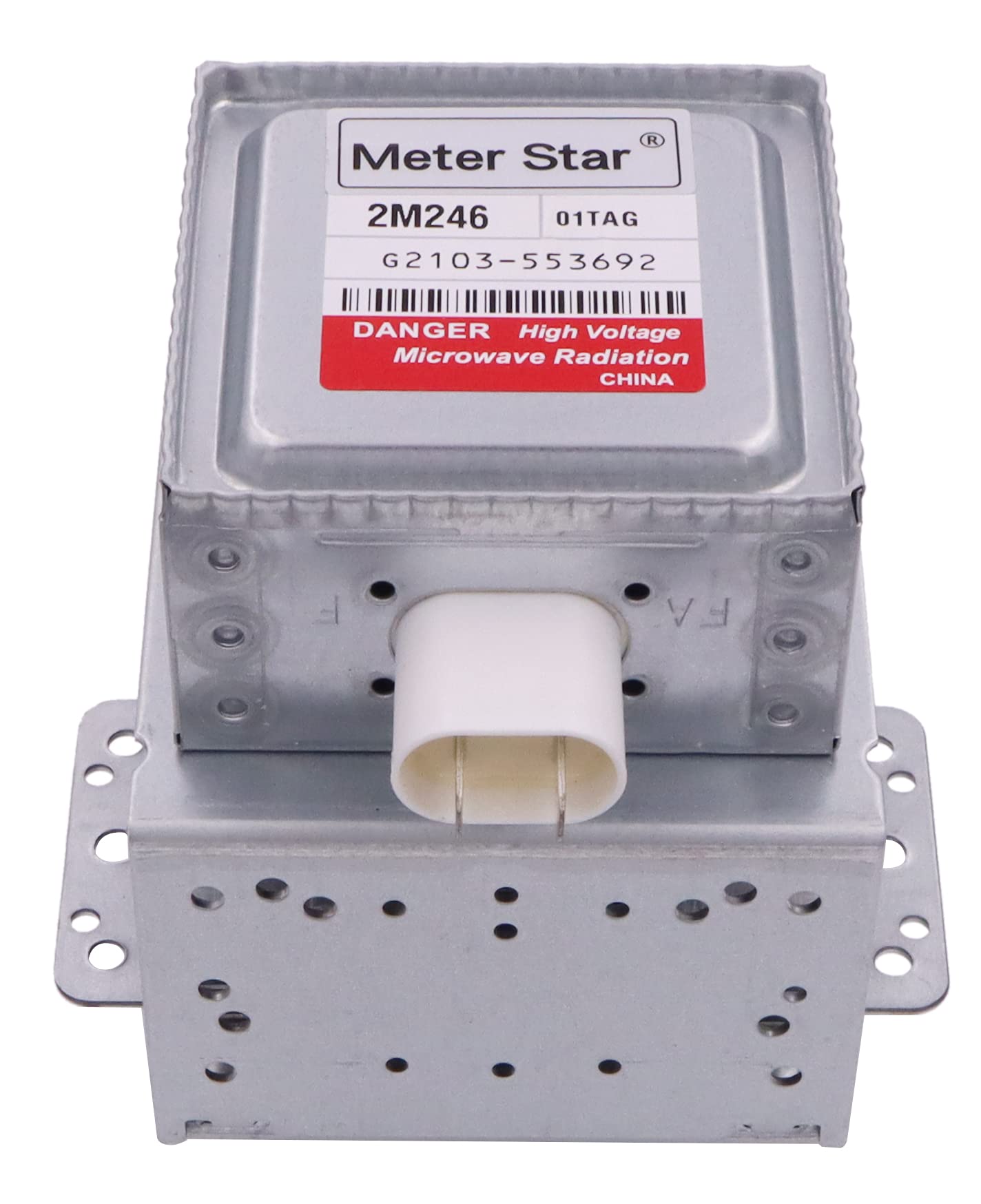

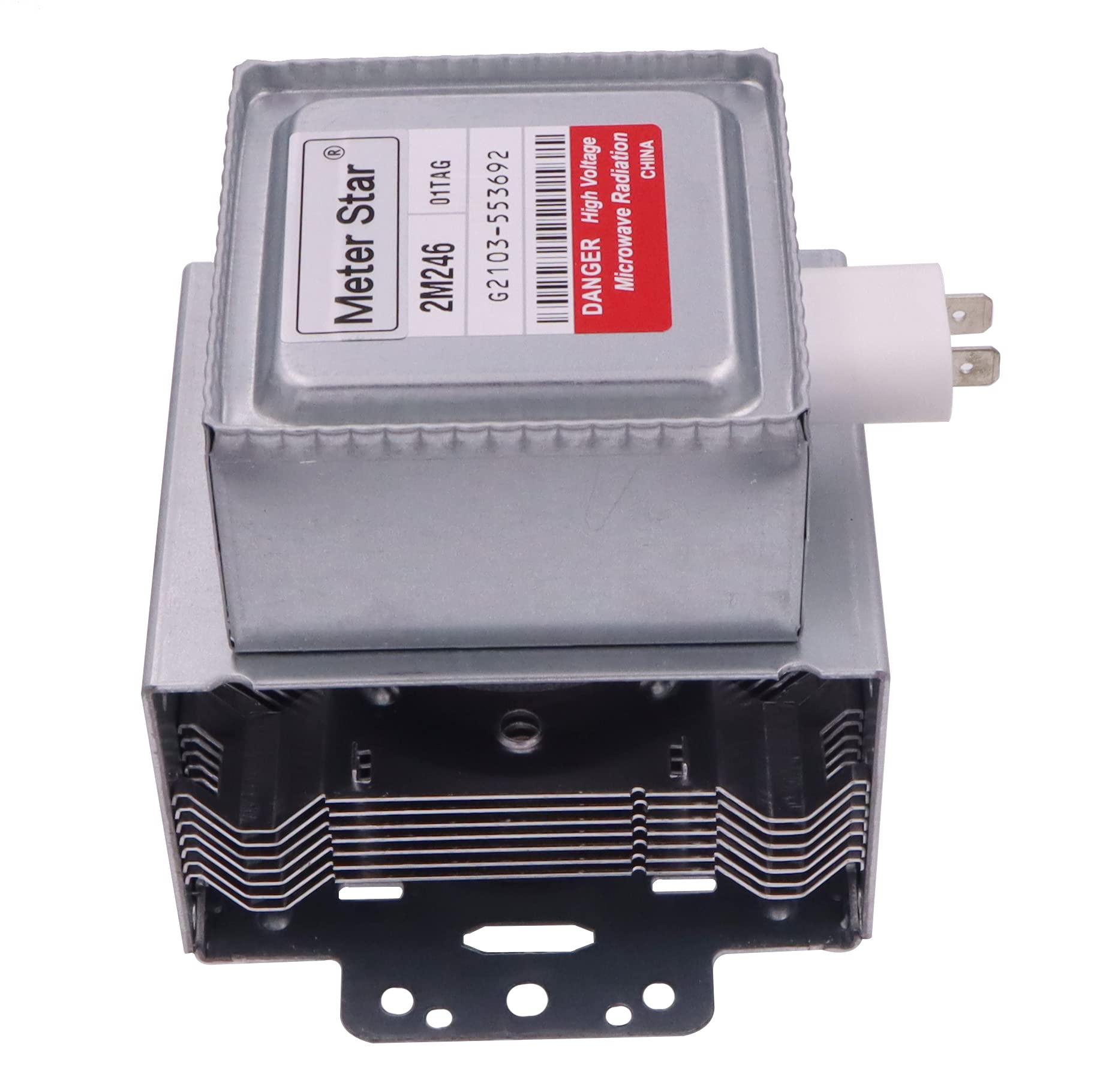

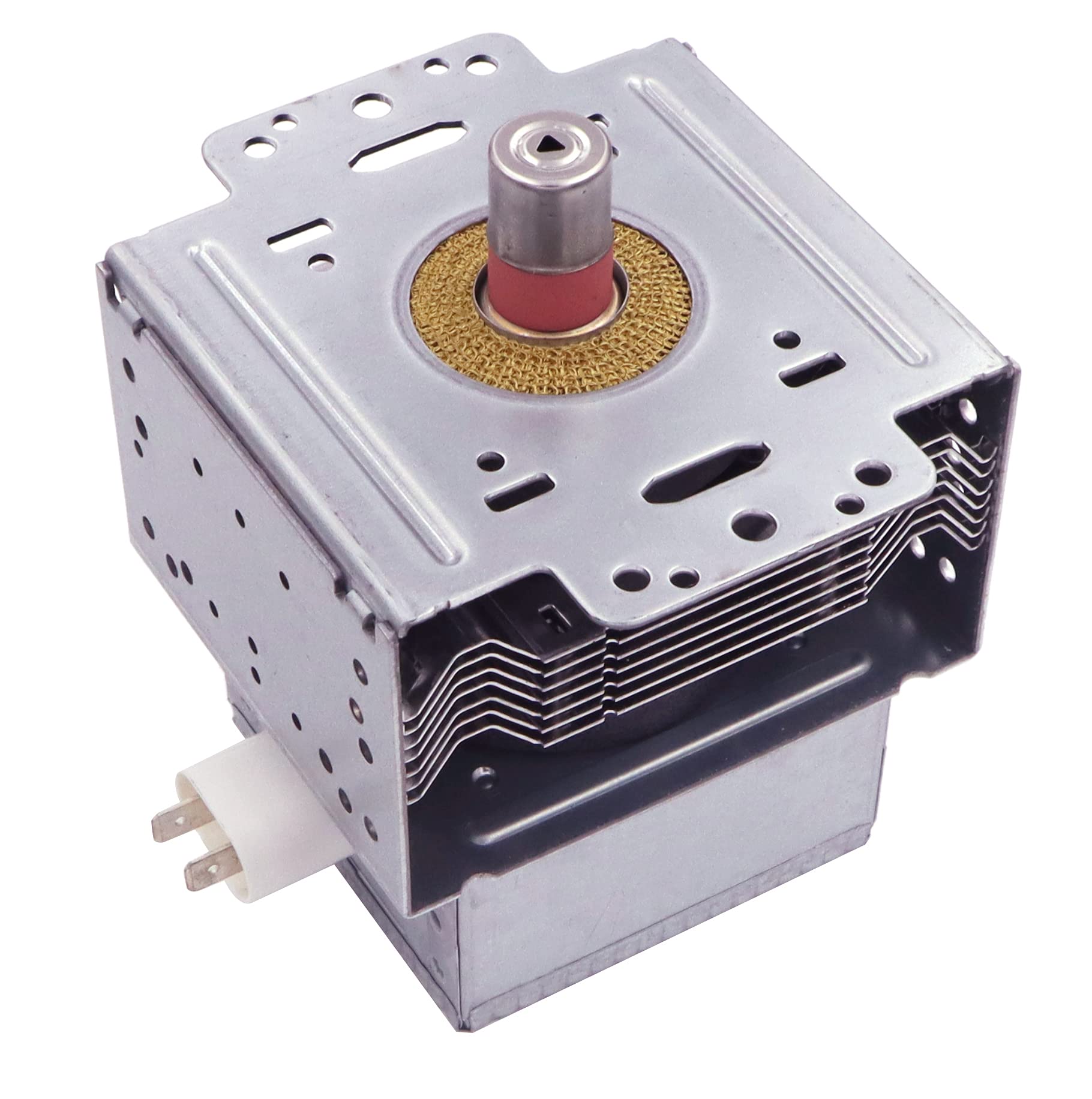

Meter Star Magnetron 2M246 050GF – Microwave Magnetron Tube Compatible with LG 6324W1A001L & 6324W1A001B, AP6316906, 1268208, AP4457332

Meter Star Magnetron 2M246 050GF – Microwave Magnetron Tube Compatible with LG 6324W1A001L & 6324W1A001B, AP6316906, 1268208, AP4457332

Read the follwing tips before you repair magnetron
1.Please shut down power supply and use electrical meter to conform high voltage has been released before you replace it. Safe is first.
2.Not include install screws and thermostat, so remove your old magnetron and keep remain your original screws and thermostat, reused for new magnetron.
3.Microwave no heat, there are many root cause, please check high voltage capacitor, hv diode and fuses first,Final check magnetron.
4.Microwave magnetrons are similar to each other if power is similar or near and install hole meets. They can be replaced with each other. 5.Small home microwave power is about 750 – 900 Watts, most home microwave power is about 1 kWatts.
6. Replace general 900 Watts home microwave magnetron for you and save your time.
For use with the following LG Electronics models:
LCRM1240ST,LMA1150SV,MV1610ST,MV1610WW,LMAB1240ST,LMA1560SB,MVH1615WW,MV1502W,LRM1250W,LCRM1240SW,MA1011W,MV1502B,LRM1250B,ETC.
Product Name:Microwave Oven Magnetron 2m246 01tag And Diode Kit
Condition: 100% brand new
Filament voltage:3.15V;
The average anode current: 330mA;
Filament current: 10.5A;
Frequency: 2460MHZ;
Output Power: 1050W;
Package include: 1 * 2m246 Microwave Oven Magnetron
6324W1A001L Microwave Oven Magnetron. For use with the following models: LCRM1240ST, LMA1150SV, MV1610ST, MV1610WW, LMAB1240ST,
LMA1560SB, MVH1615WW, MV1502W, LRM1250W, LCRM1240SW, MA1011W, MV1502B, LRM1250B, LTRM1240SB, LTRM1240SW, LRM1230B,
LRM1230W, LRM1250W01, LRM1260SW, MV1501B, MS1243AZ, MD1244AC, MD1244AT, MS1245ACS, MS1244AL, MS1545ABS, MS1245QR,
MV1541AY, MV1645EGL, MV1541X, MV1646EGY, MV1646EG, and the MAR1140W. Please refer to your manual to ensure ordering the correct, compatible part.
If the products are damaged in transit, or defect products, we will provide free return policy.

About this item:
– Part number: 2M246 050GF replaces: 6324W1A001L, 6324W1A001B, 6324W1A001E, 6324W1A001H, PS3529034, 1268208, AP4457332.
– Magnetron fixes the following symptoms: No heat, and it is a replacement part for common repairing, multi-holes for installing and fixing. The 2M246 050GF is the same power as the 2M246 01TAG and can be used interchangeably.This is Original Aftermarket Parts .
– Product Principle: Magnetron microwave system is one of the most widely crossed-field oscillating tube, share common features “M” type device: big power, high efficiency, low voltage, small size and low cost.
– This part fixes the following symptoms: No heat, and it is a replacement part for common repairing,multi-holes for installing and fixing, save your time.The package contains: 2M246-050GF *1, The packaging size is approximately L: 4.5″ x W: 4.25″ x H: 5″.
– Amazon official warehouse and distribution,safe and fast, if you have any questions during use, please send an email at any time, we will help you solve the problem in the first time.
– Magnetron fixes the following symptoms: No heat, and it is a replacement part for common repairing, multi-holes for installing and fixing, save your time. The 2M246 01TAG is the same power as the 2M246 050GF and can be used interchangeably.

Replaces part numbers: 2M246

Condition: New: This item is brand new, unused, unopened, and in its original packaging. It has never been worn or used and is in perfect condition, just as received from the manufacturer.
